Wireless transmission scheme of power online monitoring system

>> Application requirements

In order to better ensure the safe, stable and reliable operation of the transmission line, the power company proposed to install a video monitoring system on the transmission tower in order to quickly find and solve hidden dangers and problems. With the comprehensive transformation of the power network, a large number of high-voltage transmission towers, substations, and substations are required to be unattended and improve production efficiency.

>> Solution

In response to the special needs of the power industry, our company has proposed a complete set of wireless transmission solutions. In the process of project design, the following points were fully considered:

1. The implementation and stability of wireless transmission scheme.

2. The scalability of the overall wireless solution design.

3. Ease of later maintenance of the equipment.

Based on the above considerations, the specific design of the program is as follows, mainly divided into three parts:

1. Front-end video, data collection, voice output and wireless transmission;

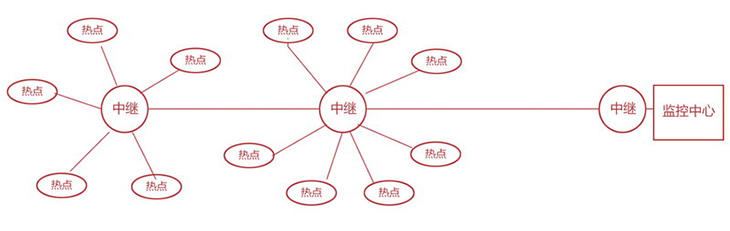

2. The wireless coverage of the middle hot spot and the point-to-point wireless transmission part;

3. The display, control and database access part of the back-end monitoring center.
